Direct View LED (DVLED)

ElationLogic Direct View LED (DVLED) systems deliver high-performance video wall solutions for indoor and outdoor environments. Designed for scalability, brightness, and viewing clarity, DVLED enables seamless large-format displays without bezels, making it ideal for immersive and high-impact visual applications.

Our DVLED offering supports a wide range of pixel pitches, brightness levels, and installation types, allowing each system to be tailored to the specific viewing distance, environment, and content requirements of the space.

Indoor LED Displays (Fine Pitch)

Indoor DVLED systems are optimized for close viewing distances and high-resolution content. These solutions are ideal for environments where image clarity and detail are critical.

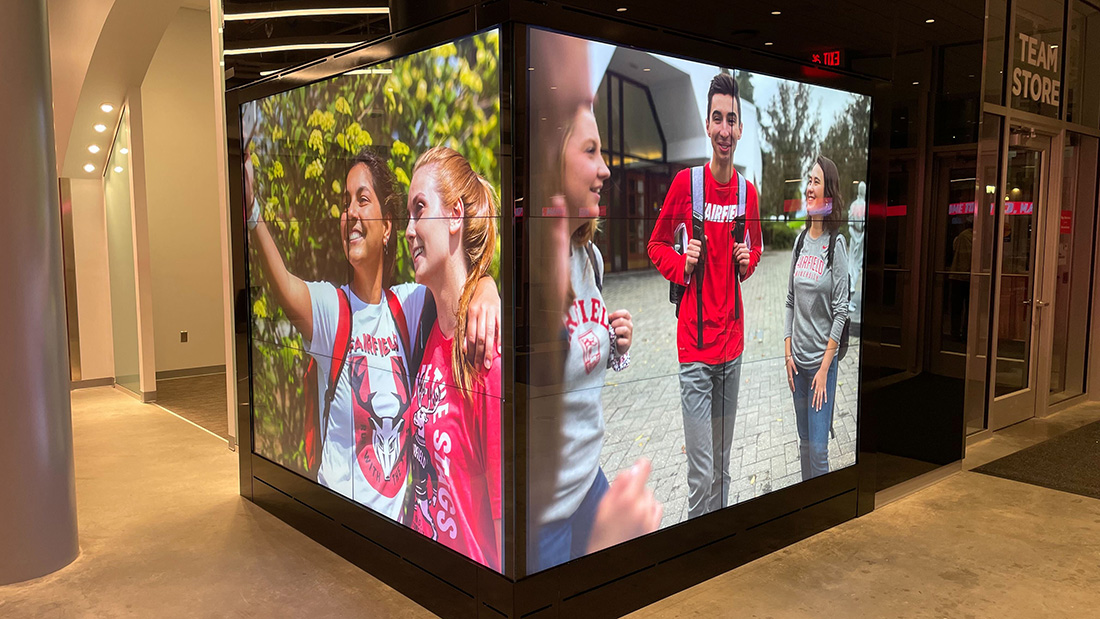

Fairfield University
Curved LED displays

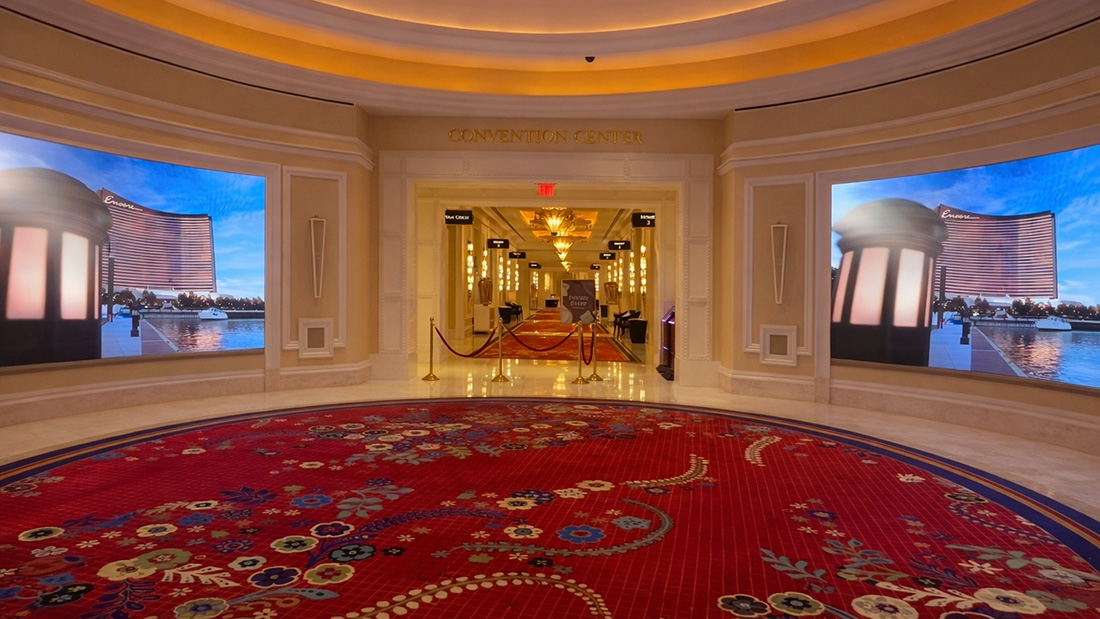

Encore Boston Harbor

Available Technologies Include

  • GOB (Glue-on-Board) – 800 nits
    Enhanced durability with protective coating, suitable for high-traffic areas
  • Flip-Chip COB (Chip-on-Board) – 1000 to 1500 nits
    Advanced LED technology offering improved contrast, durability, and thermal performance
  • SMD (Surface Mount Device) – 1000 nits
    Standard indoor LED technology with strong color performance and cost efficiency

Typical pixel pitch range: 0.7mm to 3.9mm

Common Applications

  • Broadcast and production environments
  • Control rooms and operations centers
  • Corporate lobbies and experience centers
  • Premium retail and hospitality spaces

Indoor High Brightness LED

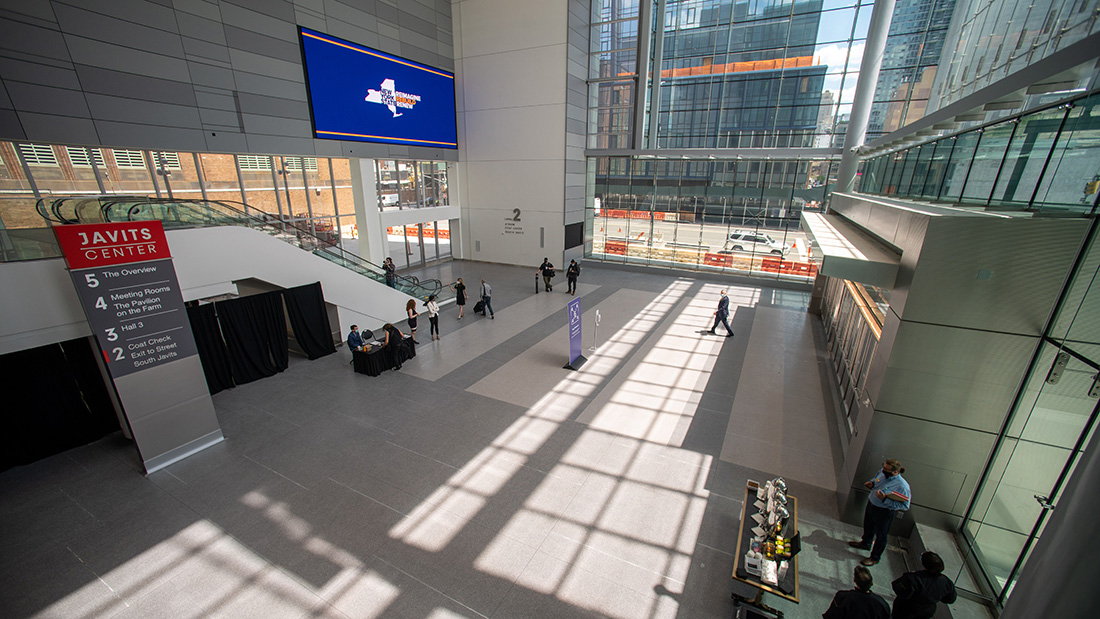

Javits Center
For indoor environments with significant ambient light or direct sunlight exposure, high brightness LED solutions provide enhanced visibility without compromising image quality.

Available Technologies Include

  • High Brightness SMD – 4000 nits

Typical pixel pitch range: 1.9mm to 5.9mm

Common Applications

  • Window-facing displays
  • Atriums and glass-enclosed spaces
  • Transportation hubs
  • High ambient light environments

Outdoor LED Displays

Outdoor DVLED systems are engineered for visibility in direct sunlight and durability in varying weather conditions. These displays deliver high brightness and robust performance for large-scale exterior applications.

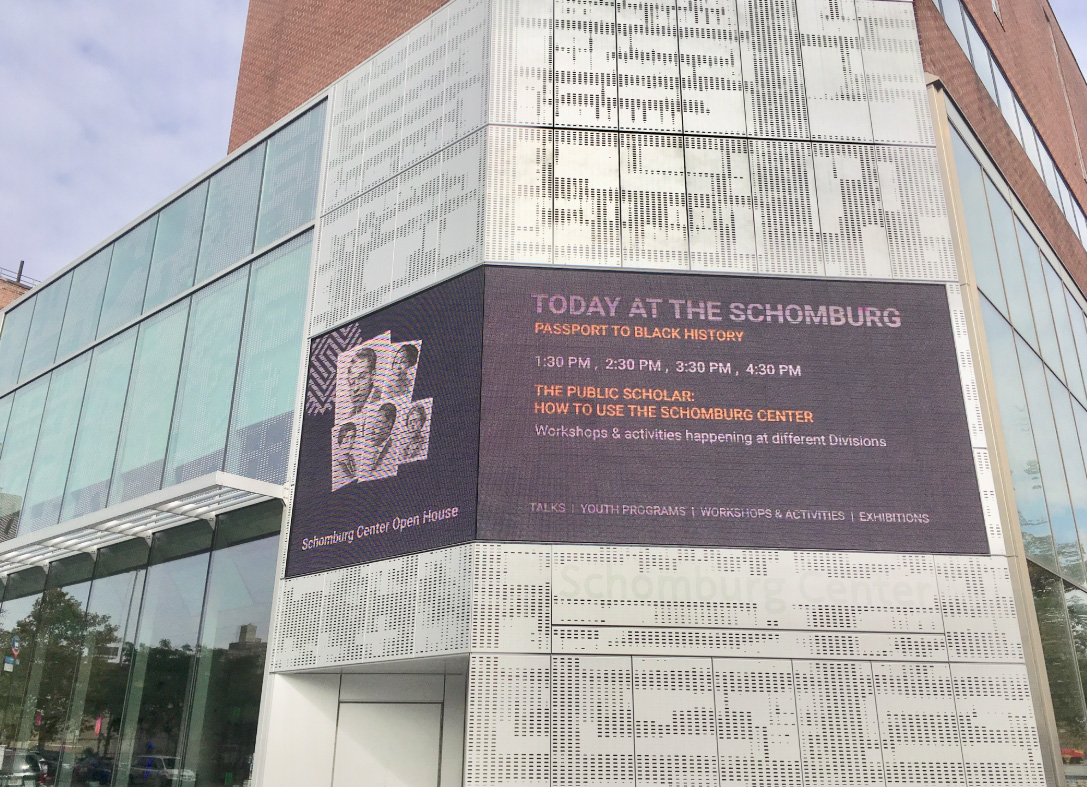

Large scale LED display wrapping around on the exterior wall of the Schomburg Center
Schomburg Center

Available Technologies Include

  • High Brightness SMD – 5000 to 10000 NITS

Typical pixel pitch range: 2.9mm to 16mm

Common Applications

  • Stadiums and arenas
  • Outdoor advertising and signage
  • Digital billboards
  • Campus and venue wayfinding

How to Select the Right DVLED System

Selecting the appropriate LED system depends on several key factors

  1. Viewing distance
    Closer viewing requires finer pixel pitch for sharper image quality
  2. Brightness requirements
    Higher ambient light conditions require higher nits for visibility
  3. Environment
    Indoor and outdoor applications require different LED technologies and enclosures
  4. Content type
    High-resolution video and data visualization benefit from tighter pixel pitch
  5. Installation size and layout
    DVLED systems are fully scalable and can be configured to fit custom dimensions and aspect ratios

System Design and Integration

ElationLogic DVLED systems are not off-the-shelf displays. Each installation is engineered based on the specific requirements of the space and application.

We provide:

  • System design and specification
  • Pixel pitch and brightness selection guidance
  • Structural and mounting coordination
  • Power and signal distribution design
  • Integration with content and control systems

Model Matrix

The following models represent available LED configurations across multiple pixel pitches, brightness levels, and technologies.

Systems are typically specified and quoted based on application requirements and priced per square meter.

Indoor LED ModelsELX15ELX19ELX19HBELX2ELX2HBELX29ELX29HBELX3ELX3HBELX5ELX5HB
Flip-Chip COB ModelsELD07ELD09ELY12ELD15ELD19ELQ
Outdoor LED ModelsELO3ELO4ELO5ELO6ELO8ELO10ELO16

Detailed specifications are available upon request or as part of a system design consultation.

Applications

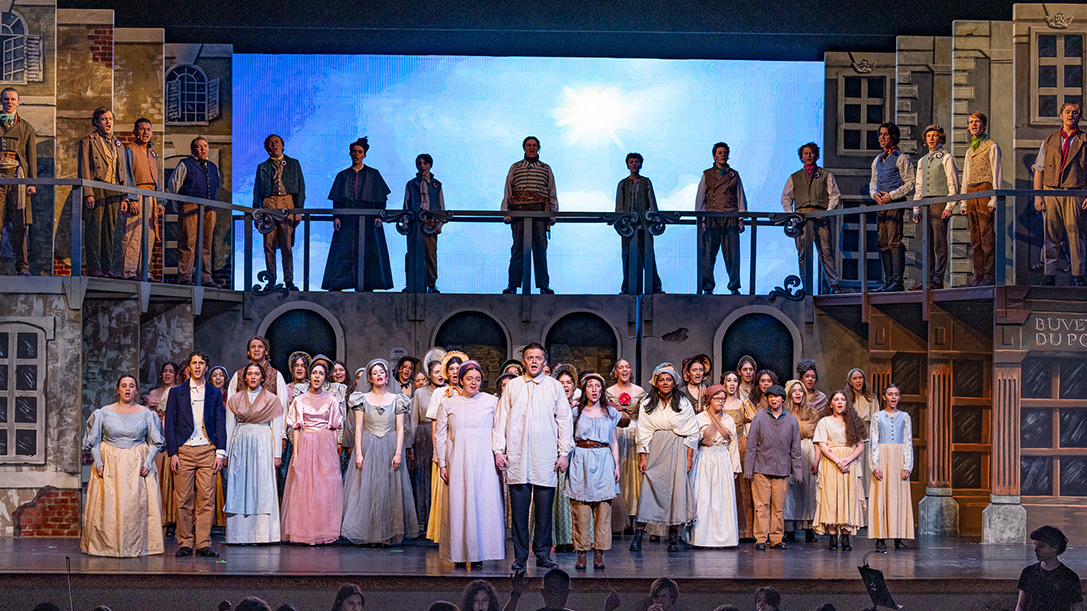

Performance of Les Misérables at Darien High School. A LED videowall serves as a backdrop.
Darien High School Auditorium

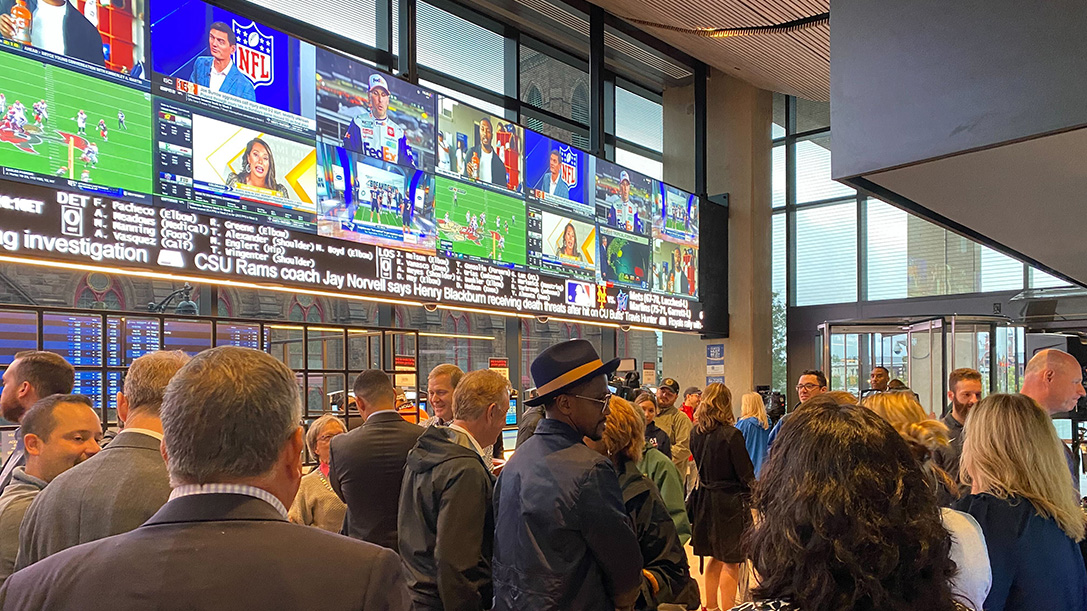

A crowded sports lounge featuring a large video wall displaying various sporting events. Numerous patrons are gathered in front of the screens, watching different games simultaneously.
People's Bank Arena Sportsbook

DVLED systems are well suited for

  • Sports and entertainment venues
  • Theaters and performance spaces
  • Hospitality and casino environments
  • Convention centers and exhibition halls
  • Corporate environments
  • Higher education campuses

Get Started

Contact ElationLogic to discuss your DVLED project. Our team will help define the right system based on your space, audience, and content goals.

Schedule a Demo
