Display Systems

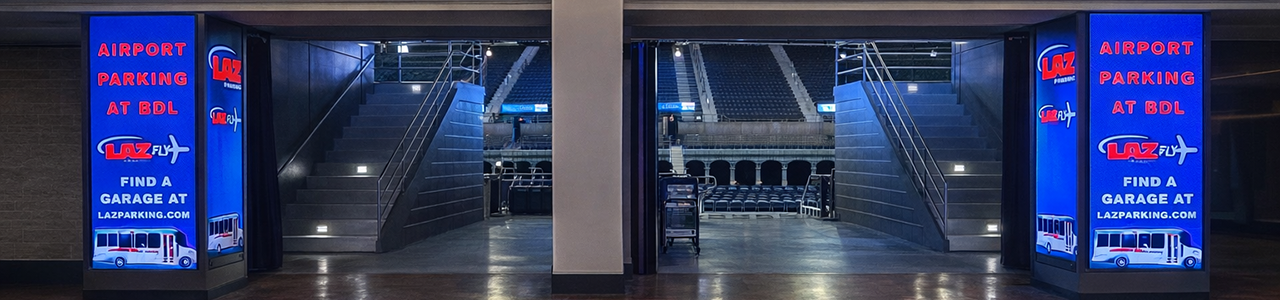

Corner LED displays by the entrance to the arena
PeoplesBank Arena
ElationLogic Display Systems are designed for digital signage applications that require durable hardware, clean integration, and flexible deployment options. Our lineup includes indoor and outdoor freestanding kiosks, touch-enabled display options, specialty display formats, and supporting mounts and remote power solutions.

Whether the application is wayfinding, guest engagement, advertising, menu display, or specialty architectural signage, ElationLogic Display Systems are built to support high-visibility environments with practical installation options and commercial-grade performance.

Freestanding Kiosks

Our freestanding kiosk line is available in multiple sizes, single-sided and double-sided configurations, and both indoor and outdoor versions to support a wide range of venue and signage applications.

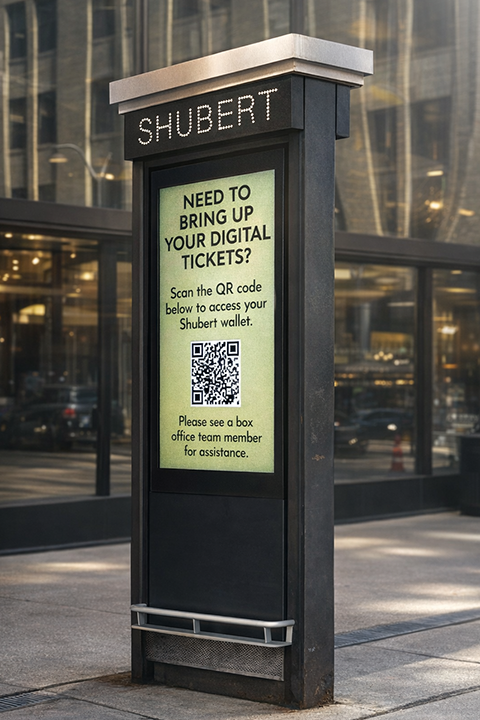

Free standing digital kiosk
Shubert Theater
Free standing digital kiosk
Atrium Health Amphitheater

Indoor Freestanding Kiosks

Ideal for lobbies, concourses, retail environments, hospitality spaces, and other climate-controlled locations.
KD-55S

55 inch single-sided freestanding kiosk

Indoor, 1500 nits, 1080p60, 120 to 208VAC, 60Hz, powder-coated finish

KD-65S

65 inch single-sided freestanding kiosk

Indoor, 1500 nits, 1080p60, 120 to 208VAC, 60Hz, powder-coated finish

KD-75S

75 inch single-sided freestanding kiosk

Indoor, 1500 nits, 1080p60, 120 to 208VAC, 60Hz, powder-coated finish

KD-55D

55 inch double-sided freestanding kiosk

Indoor, 1500 nits, 1080p60, 120 to 208VAC, 60Hz, powder-coated finish

KD-65D

65 inch double-sided freestanding kiosk

Indoor, 1500 nits, 1080p60, 120 to 208VAC, 60Hz, powder-coated finish

KD-75D

75 inch double-sided freestanding kiosk

Indoor, 1500 nits, 1080p60, 120 to 208VAC, 60Hz, powder-coated finish

Outdoor Freestanding Kiosks

Built for exterior deployments where higher brightness is required for daylight readability.

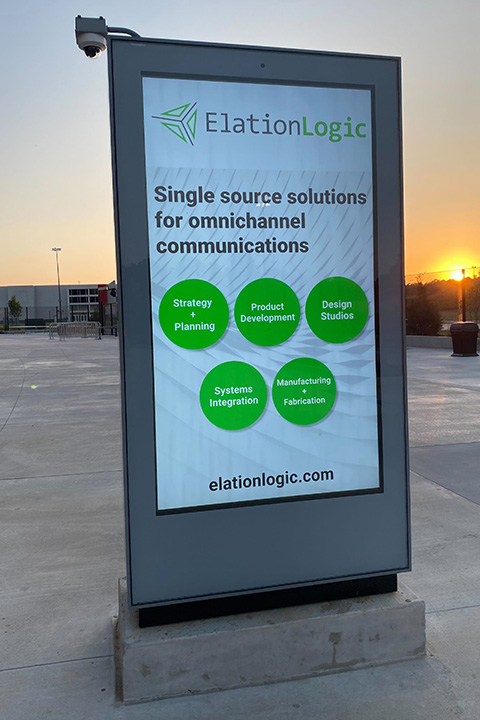

Free standing digital kiosk
Perelman Performing Arts Center

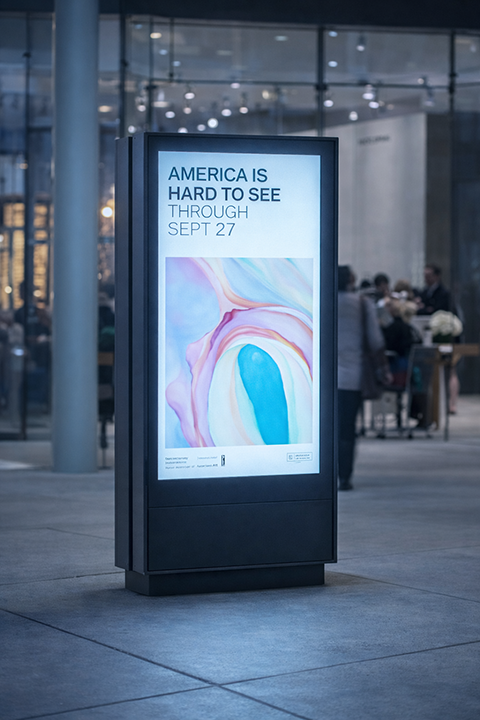

Free standing digital kiosk
Whitney Museum
KDE-55S

55 inch single-sided freestanding kiosk

Outdoor, 3500 nits, 1080p60, 208VAC, powder-coated finish

KDE-55D

55 inch double-sided freestanding kiosk

Outdoor, 3500 nits, 1080p60, 208VAC, powder-coated finish

KDE-75S

75 inch single-sided freestanding kiosk

Outdoor, 3500 nits, 1080p60, 208VAC, powder-coated finish

KDE-75D

75 inch double-sided freestanding kiosk

Outdoor, 3500 nits, 1080p60, 208VAC, powder-coated finish

Touch Options

Touch capability is available for applications that require user interaction, including directories, self-service workflows, information kiosks, and interactive engagement.

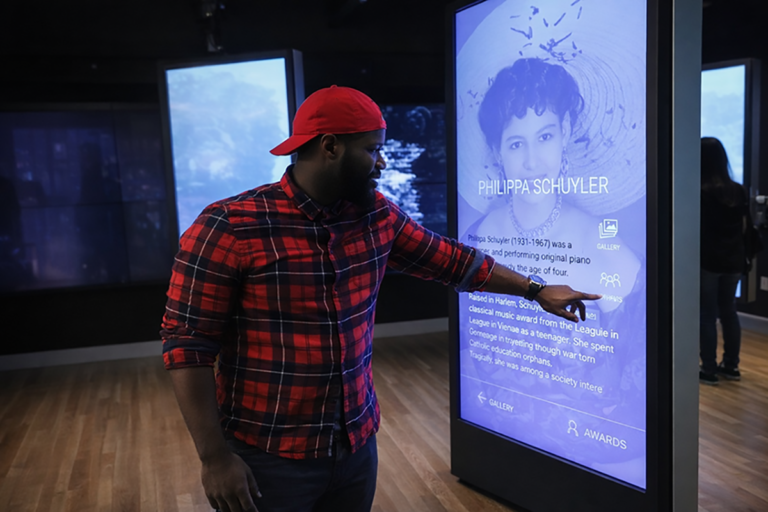

A person interacting with a touch enabled kiosk
Schomburg Center
KDT-55

55 inch multi-touch option

Available per display face for indoor or outdoor systems

KDT-65

55 inch multi-touch option

Available per display face for indoor or outdoor systems

KDT75

75 inch multi-touch option

Available per display face for indoor or outdoor systems

Mounting Solutions

To support specialty installation conditions, ElationLogic offers mounting accessories for hospitality, window-facing, and other constrained environments.
SA-150

Swing Arm Display Mount

Hospitality swing arm mount for 46 to 75 inch displays under 90 lbs, with locking cover

MM-1

Mullion Mount

Designed to clamp to window mullions for displays under 40 lbs

Specialty Displays and Power

In addition to freestanding kiosk solutions, ElationLogic offers specialty display formats and supporting remote power infrastructure for unique signage applications.
Video wall mounted behind a seating area
Perelman Performing Arts
FP-29WA

29 inch wide-aspect LCD display

Narrow 32:9 29 inch diagonal LCD display, 450 nits, HDMI input

FP-27

27 inch square-aspect signage display

Frame, 48VDC low-voltage power source

FP-55

55 inch square-aspect signage display

Frame, 48VDC low-voltage power source

FP-65

65 inch square-aspect signage display

Frame, 48VDC low-voltage power source

PSU-200-4

Remote Power Supply

1RU managed remote power supply supporting up to (4) FP55/65 displays or (8) FP27 displays

Good Fit for Venues

Display Systems are well suited for

  • Arenas and stadiums
  • Theaters and performing arts venues
  • Hospitality and casinos
  • Convention centers
  • Higher education campuses
  • Corporate and mixed-use environments
