1 channel Hitachi power injector
The Blue Box has become the favorite device for powering your SMPTE-based Hitachi camera where SMPTE cabling is not available to connect the camera directly to the CCU. Designed for 120V AC operation, the Blue Box provides an interface to facility singlemode fiber using either ST connectors or Opticalcon connectors for ruggedized applications.
Dimensions: 8.5″x8.5″
Weight: 8.5lbs
Power Input: 120VAC 60Hz 1A
Power Inlet Connector: Neutrik PowerCon
Operating Temperature: 0 degree C – 40 C
Ingress Resistance: IP33

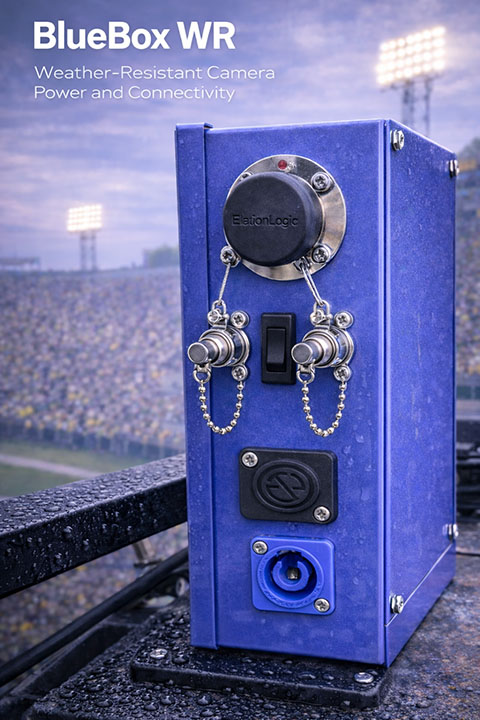

1 channel weather resistant Blue Box
Dimensions: 8.5″x8.5″
Weight: 8.5lbs
Power Input: 120VAC 60Hz 1A
Power Inlet Connector: Neutrik PowerCon
Operating Temperature: 0 degree C – 40 C
Ingress Resistance: IP65

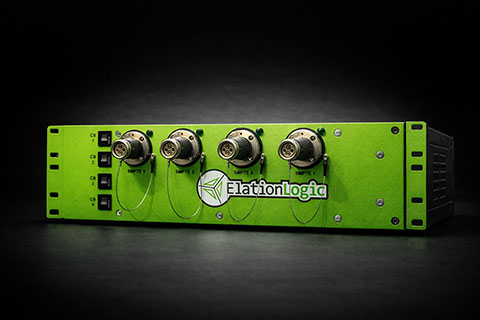

Up to 4 channels in a 4 RU rackmount chassis
The Green Box is panel-mounted a SMPTE power-injector for Hitachi cameras. Essentially a panel-mount or rack mount version of the classic Blue Box, the Green Box provides power and optical interface to standard singlemode facility fiber. With a depth of <4″ the Green Box can be installed within standard 4″ deep NEMA enclosures and can be ordered to support 3 or 4 cameras from a single housing. 70W max per channel.
Up to 4 channels in a 4 RU rackmount chassis
The Green Box is panel-mounted a SMPTE power-injector for Hitachi cameras. Essentially a panel mount or rack mount version of the classic Blue Box, the Green Box provides power and optical interface to standard singlemode facility fiber. With a depth of 6″ the Green Box-Studio is the choice for studio applications where teleprompters and talent monitors are in use. 175W max per channel

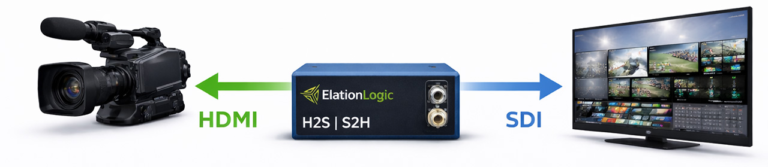

HDMI 2.0 to 3GSDI converter
Small-form 3GSDI converter. These utility devices can be used to convert HDMI to SDI seamlessly with embedded audio.
Output Port: 1 x SDI Mini size design easy to carry for engineering Industry standard design, 365 x 24 hours uninterruptible working Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit Connect with other units to extend your signal over long distances Input/Output Resolution: 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/6
3GSDI to HDMI 2.0 converter
Small-form 3GSDI converter. These utility devices can be used to convert 3G/HDSDI to HDMI seamlessly with embedded audio.
Output Port: 1 x HDMI HDMI input compatible devices:TV,Monitor,Projector Mini size design easy to carry for engineering Industry standard design, 365 x 24 hours uninterruptible working Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit Connect with other units to extend your signal over long distances Input/Output Resolution: 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/6
System Administrator Server for broadcast and AV systems
Administration Machine
Application Administration and Remote Management
Applications: Diagnostics and Broadcast/AV Management
Video Outputs: (1) HDMI, 1 Displayport
NIC’s: (2) 1G NIC’s
Storage: 256GB SSD
OS: Win10pro
Power: 12VDC Adapter
Dimensions: 6.26″ x 6.26″ x 4.49″
Weight: 1.7 Lbs
Warranty: 1 Year (3yr Optional)
System Administrator Server for broadcast and AV systems
Administration Machine
Application Administration and Remote Management
Applications: Diagnostics and Broadcast/AV Management
Video Outputs: (1) HDMI, 1 Displayport
NIC’s: (2) 1G NIC’s
Storage: 256GB SSD
Encoder Input: USB3
OS: Win10pro
Power: 12VDC Adapter
Dimensions: 6.26″ x 6.26″ x 4.49″
Weight: 1.7 Lbs
Warranty: 1 Year (3yr Optional)
System Administrator Server for broadcast and AV systems
Administration Machine
Application Administration and Remote Management
Applications: Diagnostics and Broadcast/AV Management
Video Outputs: (4) Mini-Displayport
NIC’s: (2) 1G NIC’s
Storage: 256GB SSD
Encoder Input: USB3
OS: Win10pro
Power: 90~240 VAC – 600W
Dimensions: 19″ x 17″ x 3.5″
Weight: 18 Lbs
Warranty: 1 Year (3yr Optional)
